Product Details:
Payment & Shipping Terms:
|
| Granules Shapes: | Powder | Application: | Organic Fertilizer Production |
|---|---|---|---|
| Voltage: | 380V Or 220V Or Demand | Moisture Of Material: | Below 10% |
| Name: | Organic Fertilizer Production Line | Raw Material: | Chicken Manure, Cow Manure, Pig Manure, Etc. |
| Productivity: | 1-20 Thousand Tons Per Year | Type: | Fertilizer Plant, Fertilizer Production |
| High Light: | Disc Organic Fertilizer Granulating Machine,1.5t/H Organic Fertilizer Production Line,Bio Organic Granulating Production Line |
||
1-1.5t/H Disc Organic Fertilizer Granulating Machine/Bio-Organic Fertilizer Production Line

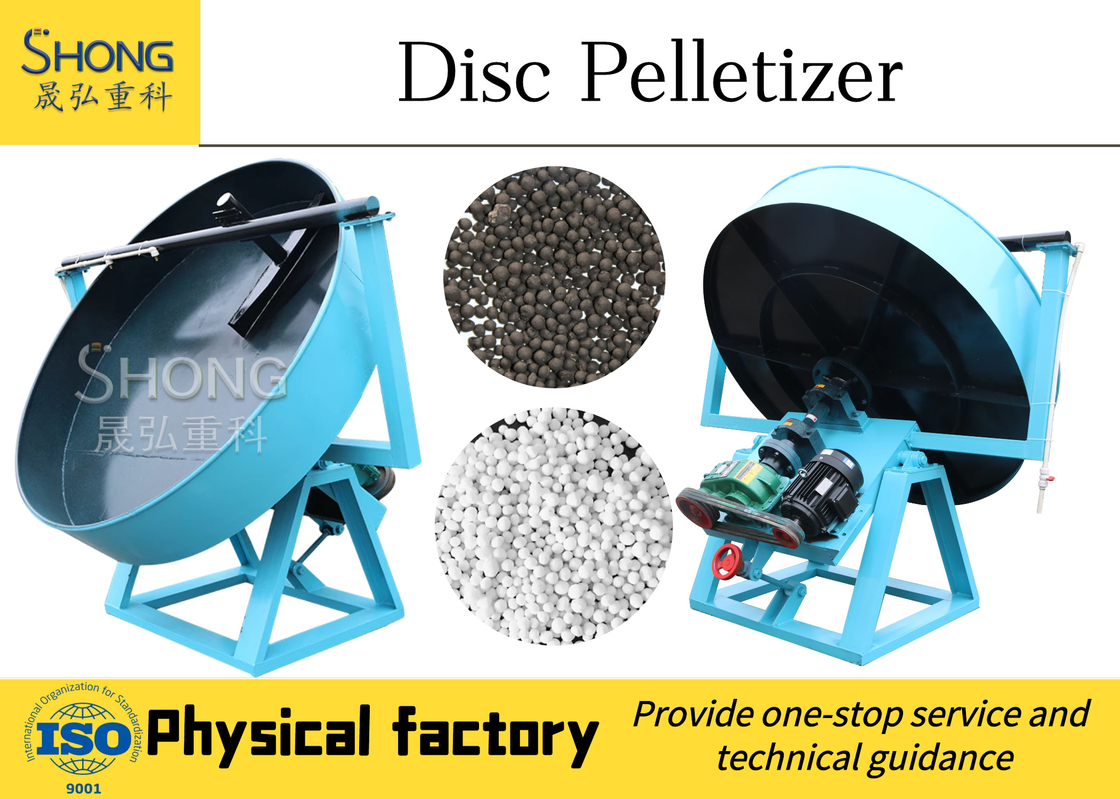

Introduction of 1-1.5t/h Disc Organic Fertilizer Granulating Machine/bio-organic Fertilizer Production Line
This disc granulator is a kind of fertilizer equipment, mainly used to process fertilizers into specific shapes. Particles processed by this granulator are of the same size. This disc granulator has the features of simple structure, high granulating efficiency, reliable performance, easy operation, and longer service life, etc. This disc granulator is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding, and also suitable for conveying of materials with granularity less than50mm.
Working Principles of 1-1.5t/h Disc Organic Fertilizer Granulating Machine/bio-organic Fertilizer Production Line
1.The pulley and the belt are driven by the main motor and the pinion is driven by the reduction gear.
2.The pinion gear is split with the large gear fixed at the bottom of the disc, and they mesh with each other and work in opposite directions.
3.The large gear is mounted on the granulation disc fixed on the frame adjustment plate through a professionally designed tapered hole.
4.The granulation disc is continuously rotated, and the spray device is used to evenly bond the materials together to form a spherical shape.
5.In addition, an automatic material feeding system is designed on the upper part of the granulation tray to prevent the material from sticking to the wall, thereby greatly improving the service life of the machine.
6.As the motor continuously rotates and the material continuously enters, mass production can be realized to meet the needs of the user.
Advantages of 1-1.5t/h Disc Organic Fertilizer Granulating Machine/bio-organic Fertilizer Production Line
1.The disc organic fertilizer granulator is one of the common fertilizer industry equipments.
2. It is applied to the medium or low concentration, small-scale production. The disc is set and adjusted between 40 °-55 °.
3. The fertilizer granulator is derived by motor reducer gear to join mixed good materials fertilizer.
4. Because of the force of gravity, it rises and scrolls down. Under the above several action and forces of plate material, the products gradually are shaped into size, then output by the round plate.
5. The disc organic fertilizer granulator has a high granulating rate, high strength, round particles, anti-corrosive, easily operated and convenient maintenance.
Parameter of 1-1.5t/h Disc Organic Fertilizer Granulating Machine/bio-organic Fertilizer Production Line
| Model | Disc diameter | Disc edge height | Speed | Volume | Powder | Capacity |
| ZL25 | 2500mm | 500mm | 13.6r/min | 2.5m³ | 7.5kw | 1-1.5t/h |
| ZL28 | 2800mm | 600mm | 13.6r/min | 3.7m³ | 11kw | 1-2.5t/h |
| ZL30 | 3000mm | 600mm | 13.6r/min | 4.2m³ | 11kw | 2-3t/h |
| ZL32 | 3200mm | 600mm | 13.6r/min | 4.8m³ | 11kw | 2-3.5t/h |
| ZL45 | 4500mm | 600mm | 12.28r/min | 6.1m³ | 37kw | 10t/h |
