Highlight:

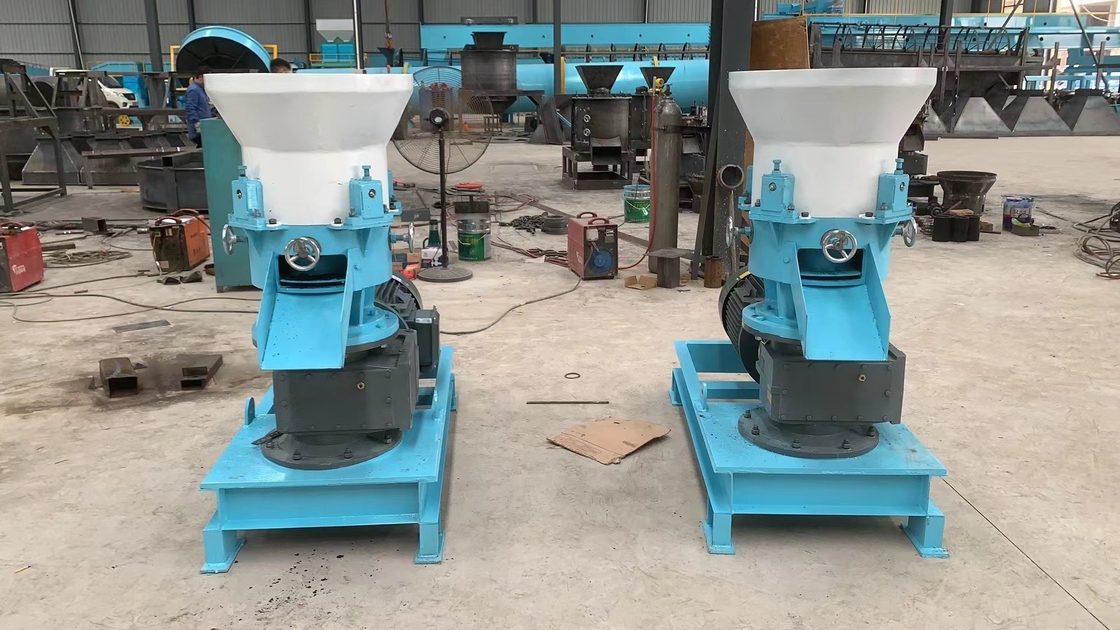

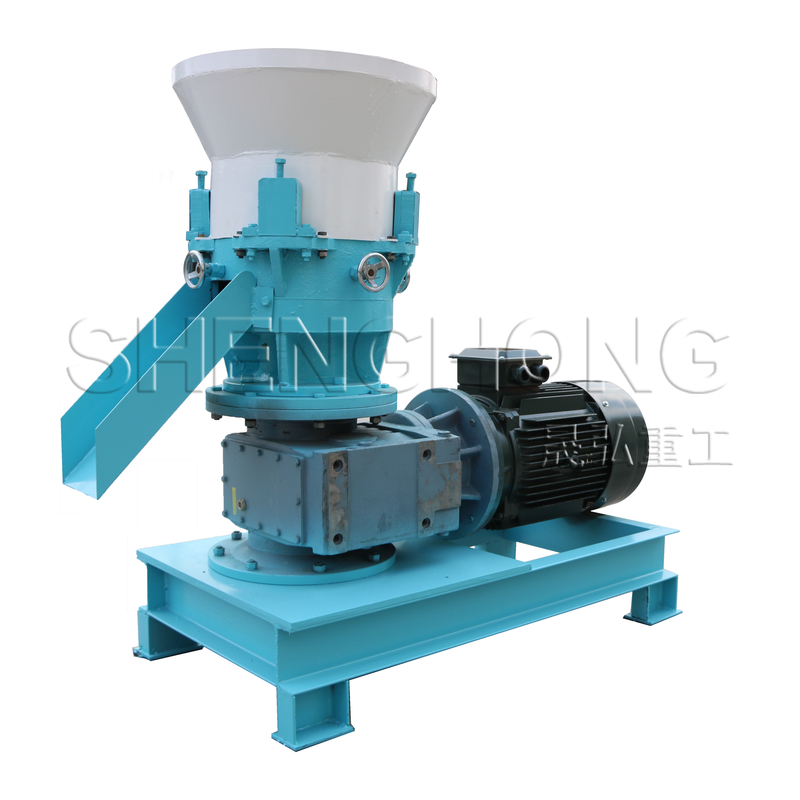

Pellet Making Pelletizer Machine
, Feed Processing Pelletizer Machine
, Home Use Pelletizer Machine

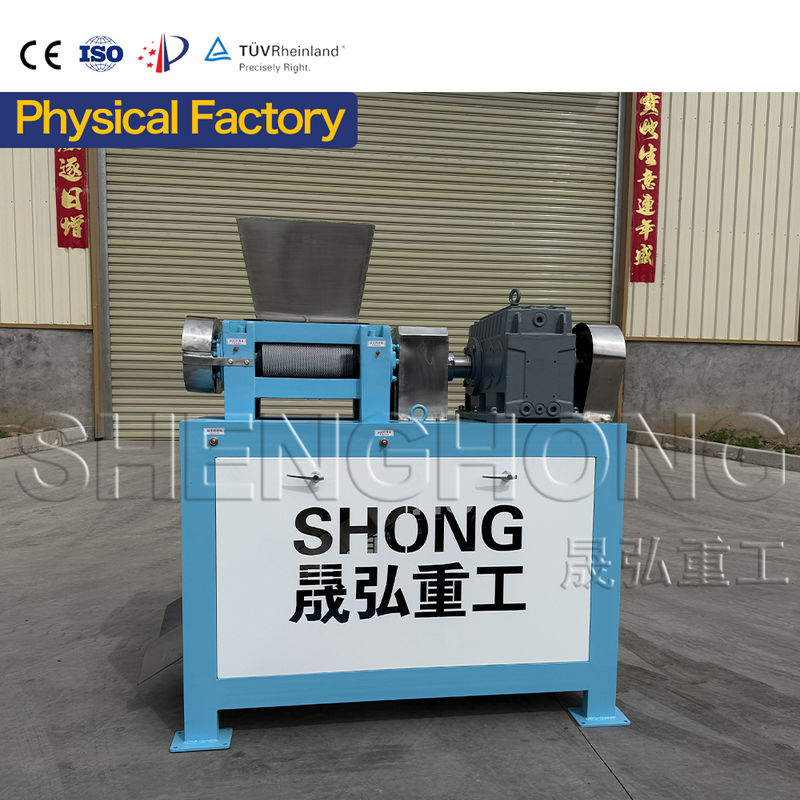

Double Roller Extrusion DAP NPK Compound Fertilizer Granulation Machine
Introduction of fertilizer granulator machine
This series of roll extrusion granulator belongs to sliding, its working principle is: belt and pulleys driven by a motor, is transmitted to the drive shaft through the speed reducer, and run in the same direction and open gear pulleys. Add material from the hopper, through the extruding roller, threshing and granulated, and then sieved into the crushing chamber by a pair of chains, where the separation of the finished product and sieved particles (balls), and then return the material And mixed with new materials for granulation. With the continuous rotation of the motor and material constantly, you can achieve mass production.
Features of fertilizer granulator machine
1, Feed in the installation stirring device to ensure uniform uniform feeding.
2. Host equipped with automatic cleaning device, to prevent the material sticking roller plate.
the gear on the regular and not displaced.
5. All parts connecting material made of stainless steel, corrosion resistant.3. The roll gap adjusting variable gear stepping adjusted to ensure that the gap symmetry, easy to operate.
4. Adjust the rollsheet inside the spline gears are adjusted to ensure that.
Advantages of fertilizer granunlator machine
1. No drying technology, normal temperature granulating, once forming.
2. Low investment, quick profit, good economic returns, etc.1. No drying, granulation at room temperature, a molding.
2. Less investment and quick profits, good economic returns and so on.
3, a combination of granulation, molding, integrally sieving, granulation beautiful appearance, easy operation, and low power consumption.
4. The main bearing frame made of high quality corrosion resistant casting material, to make it more stable, and extend the life of the roller.
Working principle of fertilizer grannulator machine
Sliding design extrusion, through a two-roll feed, then into the dispersion chamber, made of particles, a screen installed at the bottom of the machine, can be customized according to customer requirements, and finally, sieved granules qualified, and the remaining material back mixer Re-granulate.
Parameter of fertilizer granulator machine
| Model |
SDZ-I-1.0 |
SDZ-I-2.0 |
SDZ-I-3.0 |
SDZ-I-4.0 |
SDZ-II-1.0 |
SDZ-II-2.0 |
SDZ-II-3.0 |
| Capacity |
1-1.5 |
1.5-2.5 |
2.5-3.5 |
3.5-4.5 |
1-2 |
1.5-2.5 |
2.5-3.5 |
| Power |
15kw |
18.5kw |
22kw |
45kw |
15kw |
18.5kw |
22kw |
| Roller size |
150*220 |
150*300 |
186*300 |
300*300 |
150*220 |
150*300 |
186*300 |
| Feeding size |
<=0.5 |
<=0.5 |
<=0.5 |
<=0.5 |
<=0.5 |
<=0.5 |
<=0.5 |
| Finished product |
2.5-10 |
2.5-10 |
2.5-20 |
2.5-30 |
2.5-10 |
2.5-20 |
2.5-30 |
| Moisture |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
