Massive Structure And Flexible Belt Driving For Longer Lifespan Of Compound Fertilizer Granulator

Disk Pan Compound Fertilizer Granulator Pan Fertilizer Pelletizer Machine

Product Description of compound fertilizer granulator

SHQ disc compound fertilizer granulator is divided into unpowered scraper disc granulator and powered scraper disc granulator. The two kinds of disc compound fertilizer granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc compound fertilizer granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate. The motor and reducer adopt flexible belt driving, so the life time is increased by the smooth start and low impact.

Using finite element analysis to optimize the stress distribution of the rack
Use 10.9 grade high-strength bolts at critical connections
The spacing between the bottom channel steel supports has been increased to 150mm

Advantage of compound fertilizer granulator
1.Novel structure with light weight and low height, and convenient process layout;
2.Disc inclination convenient to adjustment
3.Disc compound fertilizer granulator composed by disc bottom and section, the section can adjust up and down along disc body, the pellet can’t be strain guarantee by flange at the end of disc section.
4.The scraper device composed by unpowered scraper and powered scraper, which supporting the use of optimized disc when cleaning the bottom and side, then the pelletizing result is very well and qualified pellets can be reached over 90%.

Working principle of compound fertilizer granulator

The uniform particle core was made by raw material powder, then sent into the disc, after that the core go along a parabola by centrifugal force, friction force and gravity in the disc, the moisture will go out of the core surface in the rolling process, because of the cohesiveness and plasticity, the core will become bigger with raw powder in the process. The pellet has well intensity because of the material cohesiveness and the natural volatilization of surface liquid film. When the disc inclination, edge height, rotate speed and moisture all fixed, the pellets with different diameter will rolling down from disc edge by different angle cause of different gravity, then discharging from the disc edge by rotating inclined disc body.

Parameter of compound fertilizer granulator

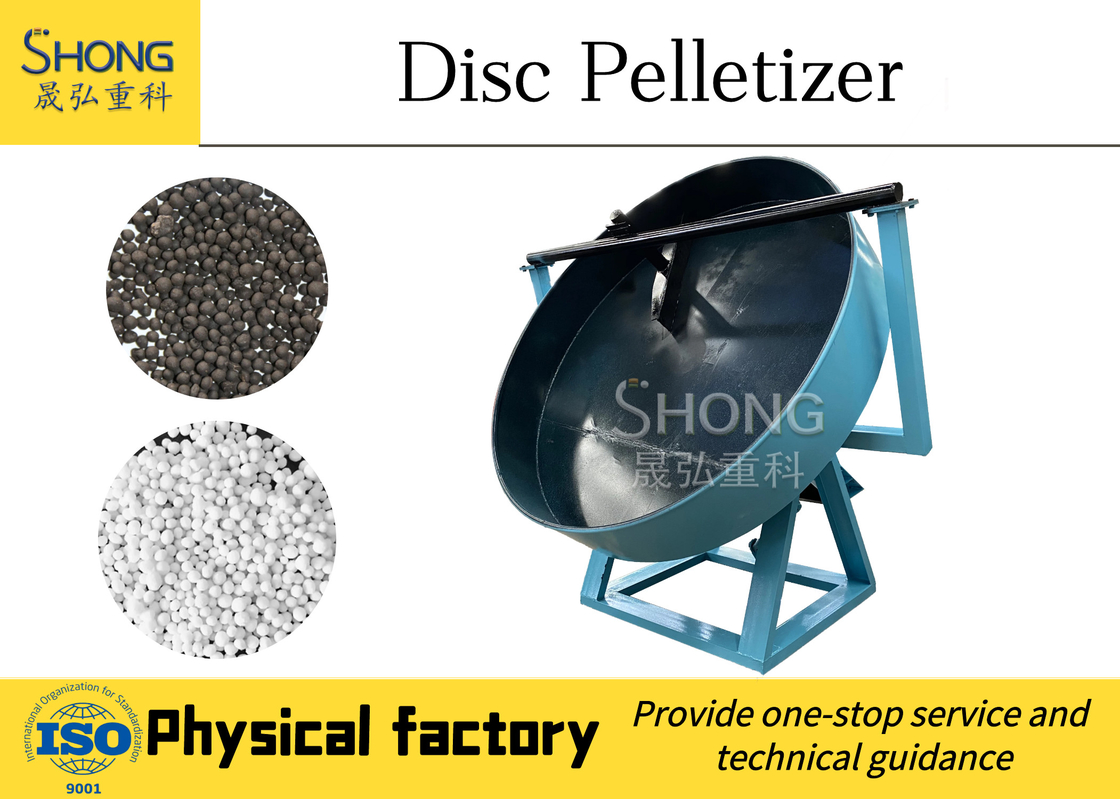

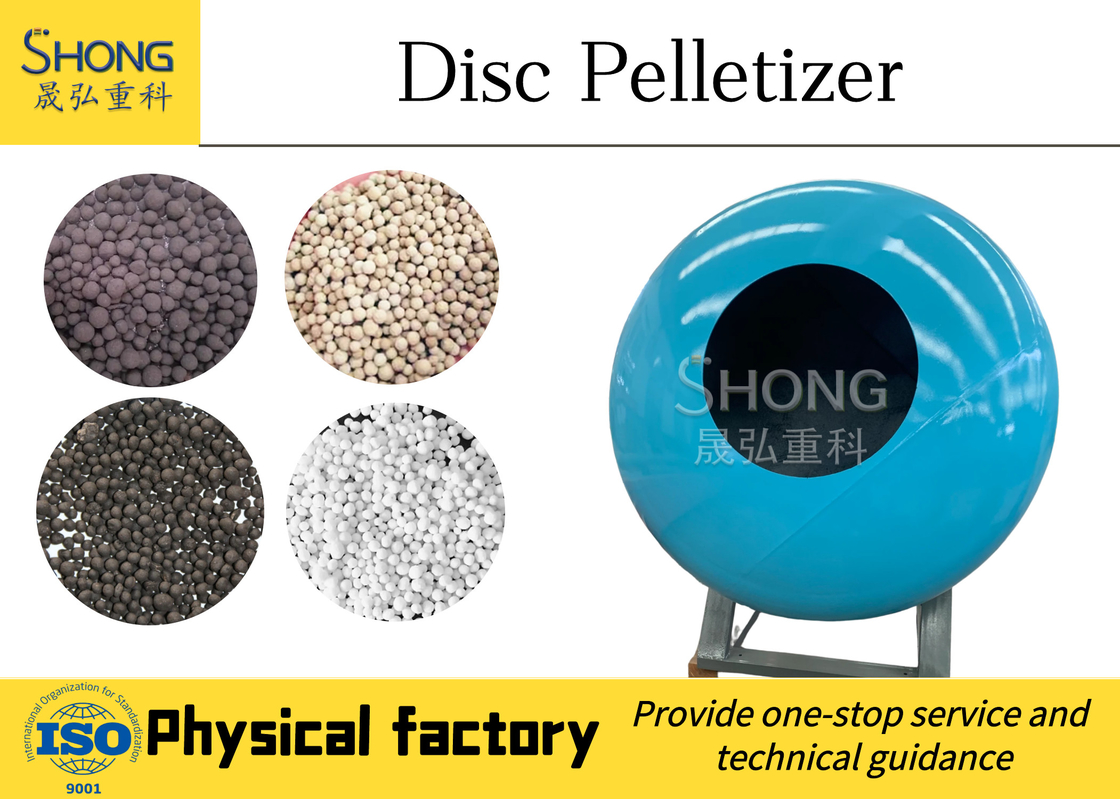

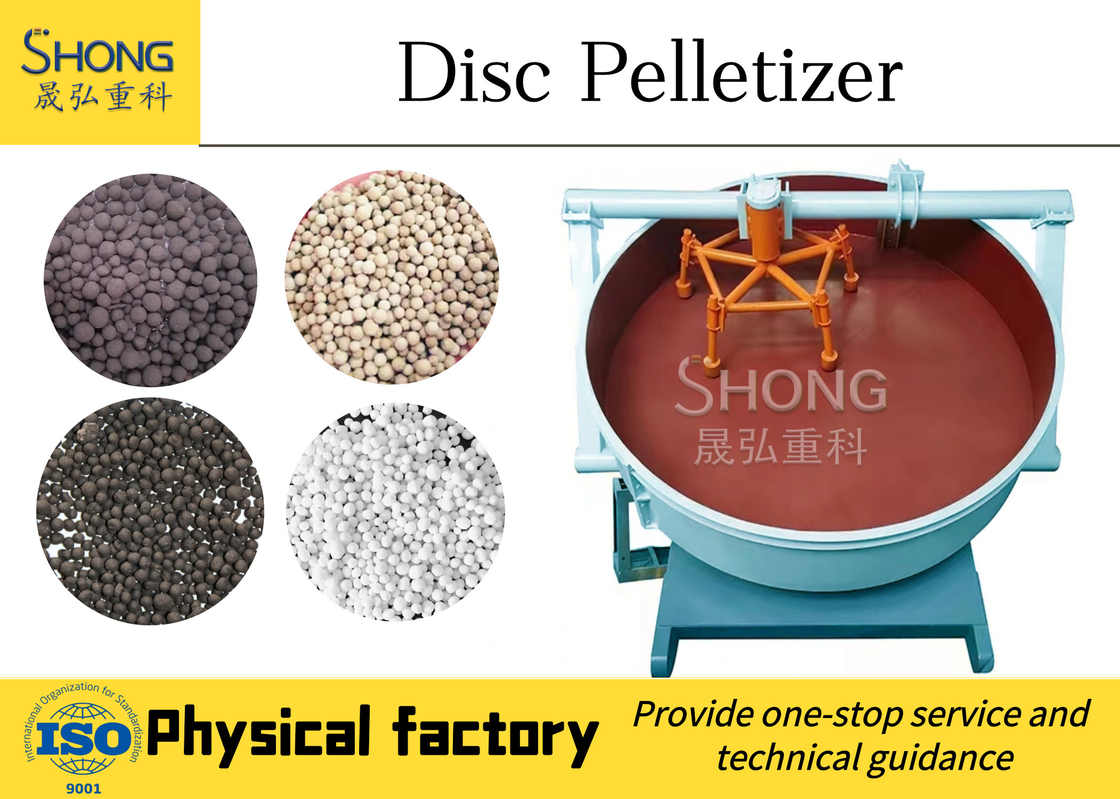

Picture of compound fertilizer granulator

Packaging and Shipping:

Product packaging:

The compound fertilizer granulator is carefully packaged to ensure that it arrives at your doorstep intact. The granulator is first wrapped in a protective plastic layer to prevent any scratches or damage during transportation. It is then placed in a sturdy cardboard box and securely sealed with tape. The package is labeled with the product name and other necessary information to ensure easy identification.

Shipping:

We ship our Fertilizer Granulators free of charge to all locations within the United States. Orders are typically processed within 24 hours and shipped via standard ground shipping. Delivery time may vary depending on your location, but is typically within 3-7 business days. Expedited shipping is also available for an additional fee.

Company Information

Zhengzhou Shenghong Heavy Industry Technology Machinery co.,ltd. (short for “Shenghong Machinery”)is recognized globally as an expert in process design and equipment manufacturer on fertilizer industry, including organic fertilizer production line with 5000 to 100000 tons per year and compound fertilizer production line with 5000 to 200000 tons per year.
Shenghong consistently helps you turn ideas into realized processes, work out material and process problems, and create value.

Client's Visit

Customers from more than 40 countries, such as Australia, Germany, South Korea, Nigeria, Pakistan, Malaysia, Chile, Turkey, Malawi, Algeria, Saudi Arabia and so on, visited the factory and purchased the machines, and they are full of praise for our machines.At the same time, we have also participated in international exhibitions such as Indonesia Exhibition, Kenya exhibition and Shanghai CAC exhibition, and received orders at exhibitions.

Installation site

We are committed to providing you with a full range of support, including equipment consultation, process design, site planning, technical support, operation training, free test runs and other comprehensive service experiences.Our professional team will provide you with on-site installation services to ensure the correct installation and debugging of the equipment. We will carry out reasonable layout and installation based on your site conditions and equipment requirements to ensure the stability and safety of the equipment.

Our Services

Our Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
Our after-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.

FAQ

1.Are you manufacturer or trade company?
We are a professional manufacturer for producing fertilizer process machines and related machine(granulator, crusher, mixer, packing, feeding machines and conveyor belt) etc.
2.How about the delivery time?
It can be shipped immediately for the machine in stock,and 5-7days for the machine out of stock
3.How long is the guarantee?
Warranty for 12 months without artificial and deliberate damage.
4.How should to do if I meet some trouble while using?
The English manual book and video will be provide for showing how to resolve the problems, if necessary, we will dispatch our engineer to your factory.
5. Do you provide the installation service after ordering your machines?
As for the single machine, we provide the users instruction and operation video.
As for the production line,we provide the professional construction drawing, and arrange the engineer guide the user install the machines.Help the user train the skilled workers.
6.Can we visit your factory for machine testing operations?
We warmly welcome the clients to visiting our factory for trying machine.
7.Can we see some fertilizer plant with your machine?
We can take the customer to visit fertilizer plants with our equipment.
