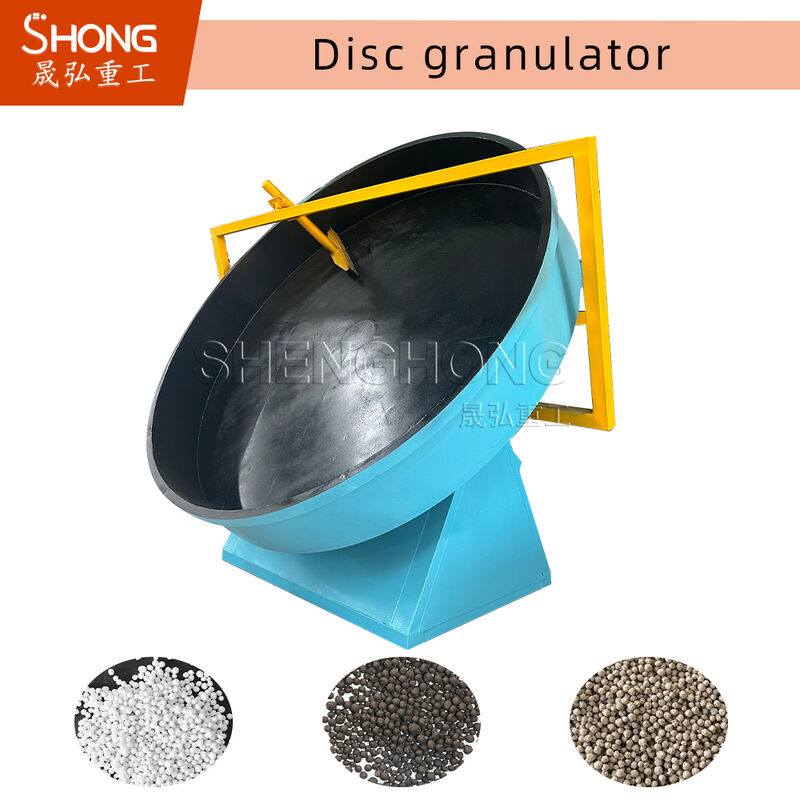

Disc Granulator Machine for Organic Fertilizer Production

Working Principle

The disc granulator operates on an inclined rotating disc principle (35-55° adjustable angle) with the following process:

Raw materials are fed continuously onto the rotating disc
Centrifugal force distributes material evenly across disc surface
Fine particles nucleate and grow through layering mechanism
Continuous tumbling action forms perfect spherical granules
Automatic scraper prevents material buildup on disc surface
Finished granules discharge by gravity when reaching optimal size

Key Technical Features

High granulation rate: ≥90% efficiency
Adjustable granule size: 2-10mm diameter
Material moisture tolerance: 20-30%
Low maintenance: Automatic lubrication system

Available Models

Model	Rotation Speed (r/min)	Motor Power (kw)	Capacity (t/h)	Dimensions (mm)
SHQ-80	25	1.5	0.1-0.2	900×1100×1000
SHQ-10	21	2.2	0.3-0.5	1400×1200×1400
SHQ-15	17	3	0.5-0.8	1750×1620×2000
SHQ-18	17	5.5	0.6-1	2000×1980×2100
SHQ-20	19	5.5	0.8-1.2	2200×2300×2200
SHQ-25	13.6	7.5	1-1.5	2200×2800×2700
SHQ-28	13.6	11	1.8-3	3100×2350×3060
SHQ-30	11	11	3-4.5	3400×2500×3165
SHQ-32	10	15	3.5-5	3500×2600×3350
SHQ-36	10	22	5-7	4000×2990×3460
SHQ-45	12	30	13-18	5030×3750×4300
