ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. Company Profile
Products
Home > Products > Compound Fertilizer Production Line > Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator
Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator
Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator
Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator

Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator

Product Details

Place of Origin: Zhengzhou, Henan Province China

Brand Name: Shenghong

Certification: CE, ISO

Model Number: SH series

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: can be negotiated

Packaging Details: Container or Plywood Box

Delivery Time: 10-15 working days

Payment Terms: T/T,L/C,Western Union

Supply Ability: 200 Sets Per Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Low Energy Consumption Fertilizer Production Line

,

Dry Process NPK Fertilizer Production Line

,

Automatic Rotary Drum Granulator

Voltage:
380V, 50HZ, Customized
Production Capacity:
1-20 T/H
Energy Consumption:
Low Energy Consumption
Fertilizer Types:
NPK, Organic Fertilizer, Etc.
Machine Materials:
Carbon Steel Or Stainless Steel
Working Method:
Dry Process
Installation:
Under The Guidance Of Our Engineers
Function:
Mixing, Granulating,
Feature:
Automatic,Multifunction
Customization:
Available
Condition:
New
Rotary Speed:
11r/min
Type:
Granulator
Voltage:
380V, 50HZ, Customized
Production Capacity:
1-20 T/H
Energy Consumption:
Low Energy Consumption
Fertilizer Types:
NPK, Organic Fertilizer, Etc.
Machine Materials:
Carbon Steel Or Stainless Steel
Working Method:
Dry Process
Installation:
Under The Guidance Of Our Engineers
Function:
Mixing, Granulating,
Feature:
Automatic,Multifunction
Customization:
Available
Condition:
New
Rotary Speed:
11r/min
Type:
Granulator
Product Description

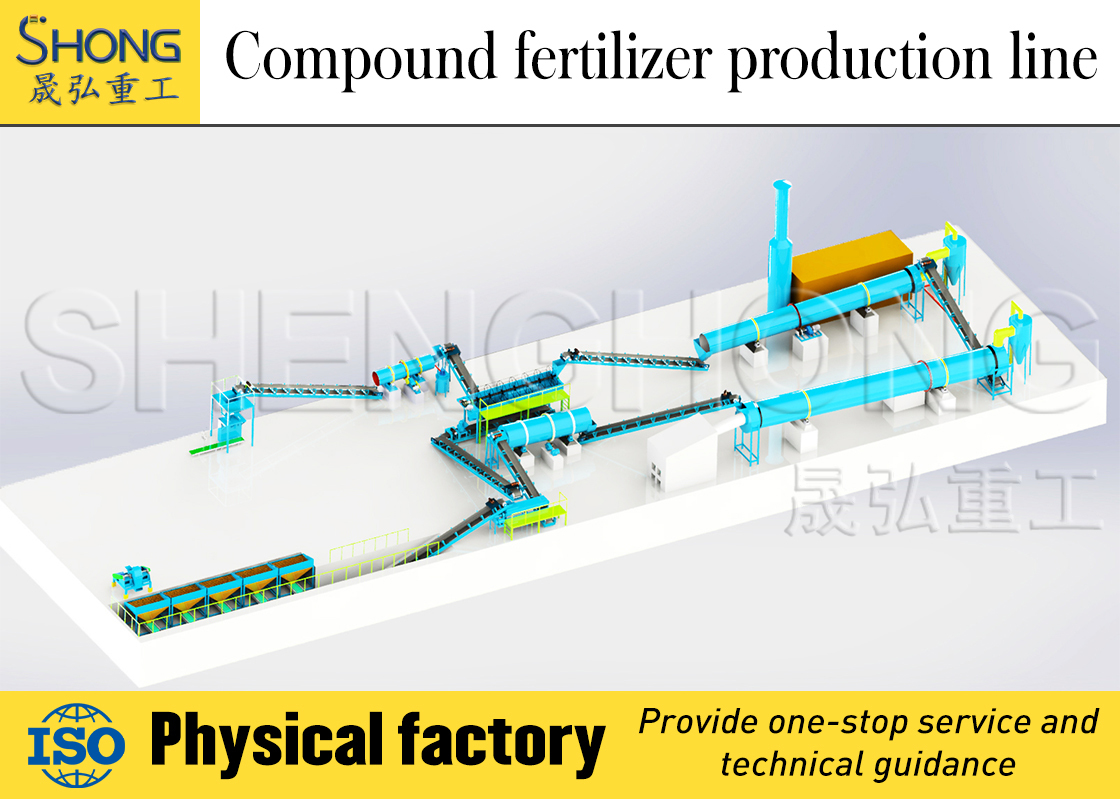

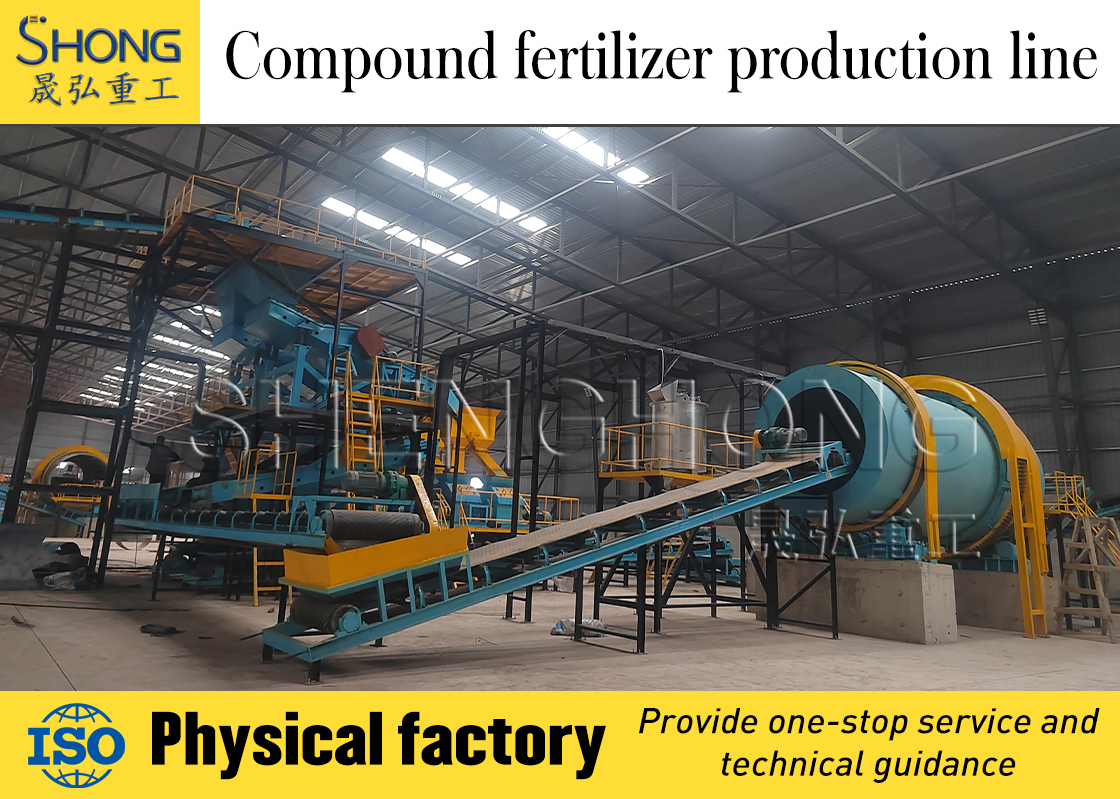

Rotary Drum Granulator Ball Shape Fertilizer Production Line

This production line is engineered for manufacturing compound fertilizer with an annual capacity of 100,000 tons. It utilizes a rotary drum granulator, renowned for its high processing capacity, making it suitable for producing high, medium, and low concentration compound fertilizers efficiently.

Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator 0

Raw Materials

  • Urea, Ammonium Sulfate, Ammonium Chloride
  • Monoammonium Phosphate (MAP), Diammonium Phosphate (DAP), Single Superphosphate, Calcium Magnesium Phosphate
  • Potassium Chloride, Potassium Sulfate, Potassium Magnesium Sulfate

Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator 1

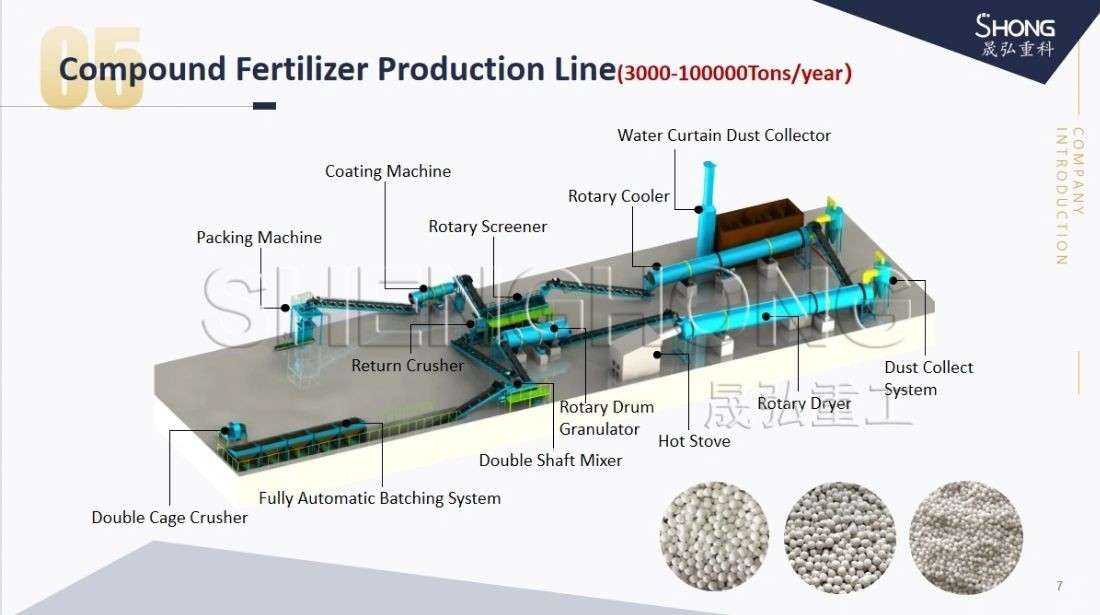

Production Process & Equipment

No.

Processes

 Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Grinding process Grinder Grind granules to powder
3 Mixing process Mixer Mix powder evenly, If necessary, add water, or other micro-elements
4 Granulating process Feeding machine & Granulator Feed mixed powder into granulator evenly and make mixed powder into fertilizer granules
5 Drying process Dryer, Hot stove, Cyclone Dry fertilizer granules to low moisture by hot air, generate hot air, and collect dust
6 Cooling process Cooler, Cyclone Cool fertilizer granules to normal temperature and collect dust
7 Screening process Screener Screen out required size from fertilizer granules
8 Coating process Coating machine Coat color, anti-blocking agent, microelements etc on fertilizer granules
9 Packaging process Air compressor & Packaging machine Generate power to packaging machine and package fertilizer granules into bags

Key Features

  • Employs proven production technology ensuring stable and highly efficient equipment operation.

  • Generates uniform spherical fertilizer particles with a diameter of 1-3mm.

  • Compatible with a broad spectrum of raw materials for flexible fertilizer grade production.

  • User-friendly production formulas allow for straightforward operation and adjustments.

Automatic Dry Process NPK Fertilizer Production Line with Low Energy Consumption and Rotary Drum Granulator 2

Raw material selection can be optimized based on market requirements and soil analysis. The line is versatile, capable of producing compound fertilizer, organic fertilizer, and organic-inorganic compound fertilizer with NPK content adjustable from 20% to 48%.
