Product Details:
Payment & Shipping Terms:
|
| Granules Shapes: | Ball Shape | Machine Type: | Disc Granulation Machine |
|---|---|---|---|
| Machine Capacity: | 0.3-6 Ton/hour | Condition: | New |
| Weight: | 2 Tons | Installation: | Under Engineer |
| Warranty: | 12 Months | Factory Visit: | Welcome |
| Material: | Carbon Steel | Origin: | Zhengzhou China |
| High Light: | fertilizer granulation equipment,fertilizer granule machine |
||

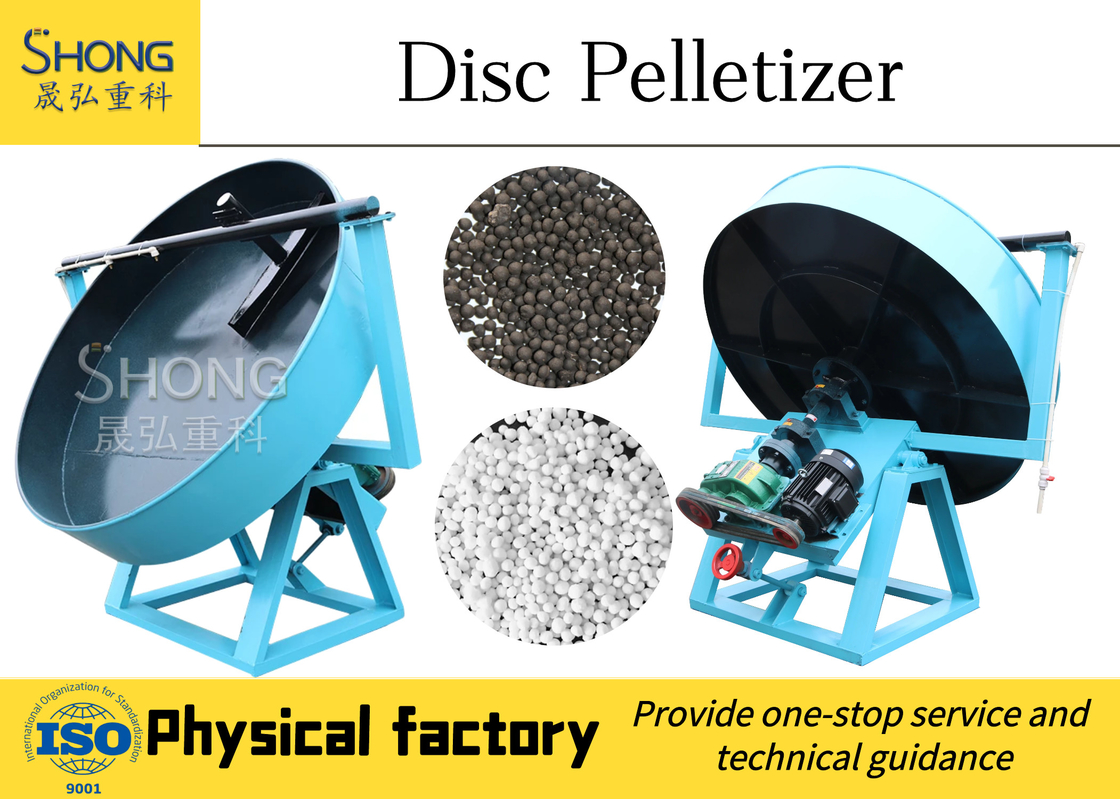

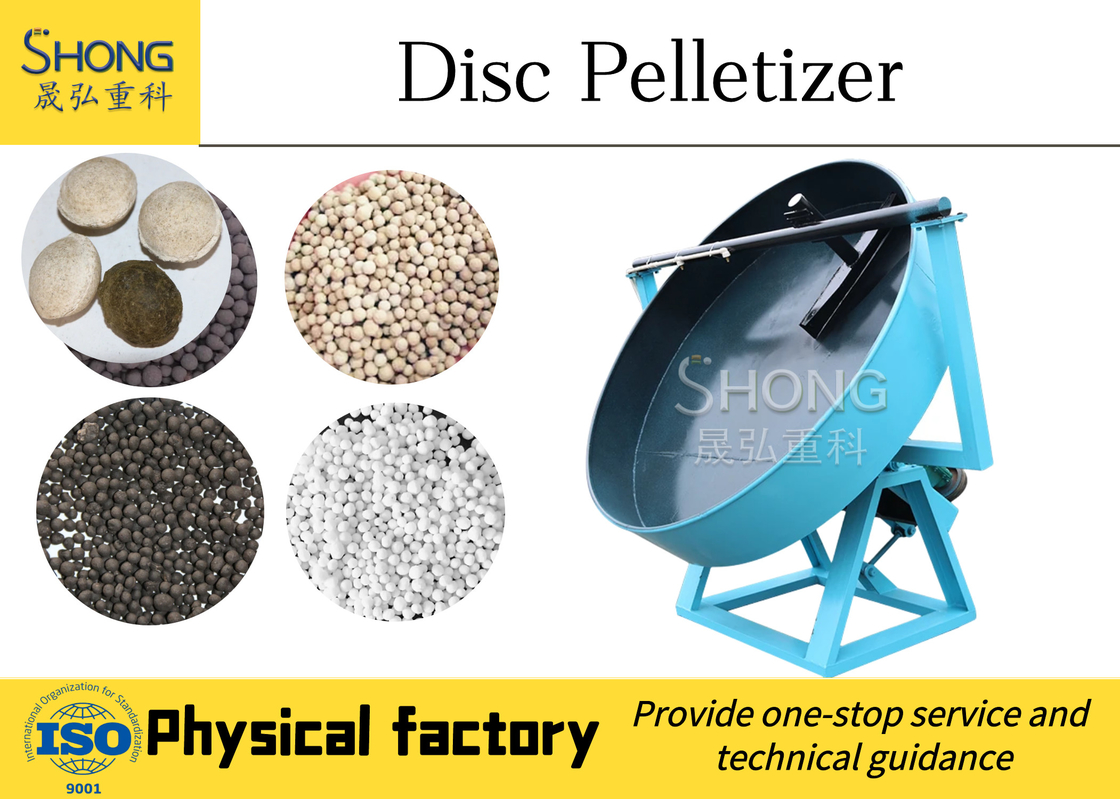

Swell Soil Fertilizer Granulator Machine , Disc Pan Granulator Plant Manufacture
Instruction Of Organic Fertilizer Pellets Granulator Machine
This series of granulating disc, granulating disc plate angle using arc structure. Granule rate can reach more than 93%. Reducer and the motor droved by the flexible belt, which made them stable starting, slow down the impact and improve the service life of equipment. Steel strengthening granulating disc bottom adopts multiple radiation, strong and durable, never deformation, thickening, compound, solid base design, do not need the anchor bolt, smooth operation. Granulator main gear adopts high frequency sudden fire to double service life. Granulation plate lining of high strength glass fiber reinforced plastic, anticorrosion and durable. The machine has advantages of uniform granules, high granule rate, smooth operation, equipment is strong and durable and long service life.
Disc granulation machine could product
| Raw material classification | Specific application |
| Inorganic fertilizer | BB and compound fertilizer powder |
| Biologics | Western medicine granules etc |
| Coal industry | Carbon granule etc |
| Others | Kinds of inorganic powder that you need manufacture granules |
Characteristics
The granulating disc has new novel and reasonable structure, weight losing and height reduced. Flexible process arrangement, suitable for old plant modification.
The market Angle is adjustable. Using Angle gaskets, flexible and convenient adjustment.
The unique combination of unpowered scraper integration make auxiliary power consumption is reduced.
The market consists of a plate body and plate section. Reduce the main motor power. Disc section along the plate body can be adjusted up and down. Side of the flange, plate section ends for a ball when acquired can ensure that the material is not strain and torn apart.
New desilting design, combined by unpowered scraper side end of qing dynasty, the qing horn scraper liquidation, cooperate with the disc body unique processing technology, desilting, into a ball effect is good, there will not be a big mud pie, feeding the ball 90% in 3 to 5 mm in diameter.
Main technical parameters
| Model no. | ZL10 | ZL15 | ZL18 | ZL20 | ZL25 | ZL28 | ZL30 | ZL32 | ZL36 | ZL45 |
| Production(t/h) | 0.3-0.5 | 0.5-0.8 | 0.6-1.0 | 0.8-1.2 | 1.0-1.5 | 1.0-2.5 | 2.0-3.0 | 2.0-3.5 | 3.0-5.0 | 4.0-6.0 |
| Motor Power (kw) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
| Innerdiam(mm) | 1000 | 1500 | 1800 | 2000 | 2500 | 2800 | 3000 | 3200 | 3600 | 4500 |
| Side height(mm) | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | 550 | 600 |
| Volume(m³) | 0.4 | 1.1 | 1.4 | 1.8 | 2.5 | 3.3 | 3.9 | 4.3 | 5.5 | 6.5 |
| Rotation speed(r/min) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
Our after-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.
