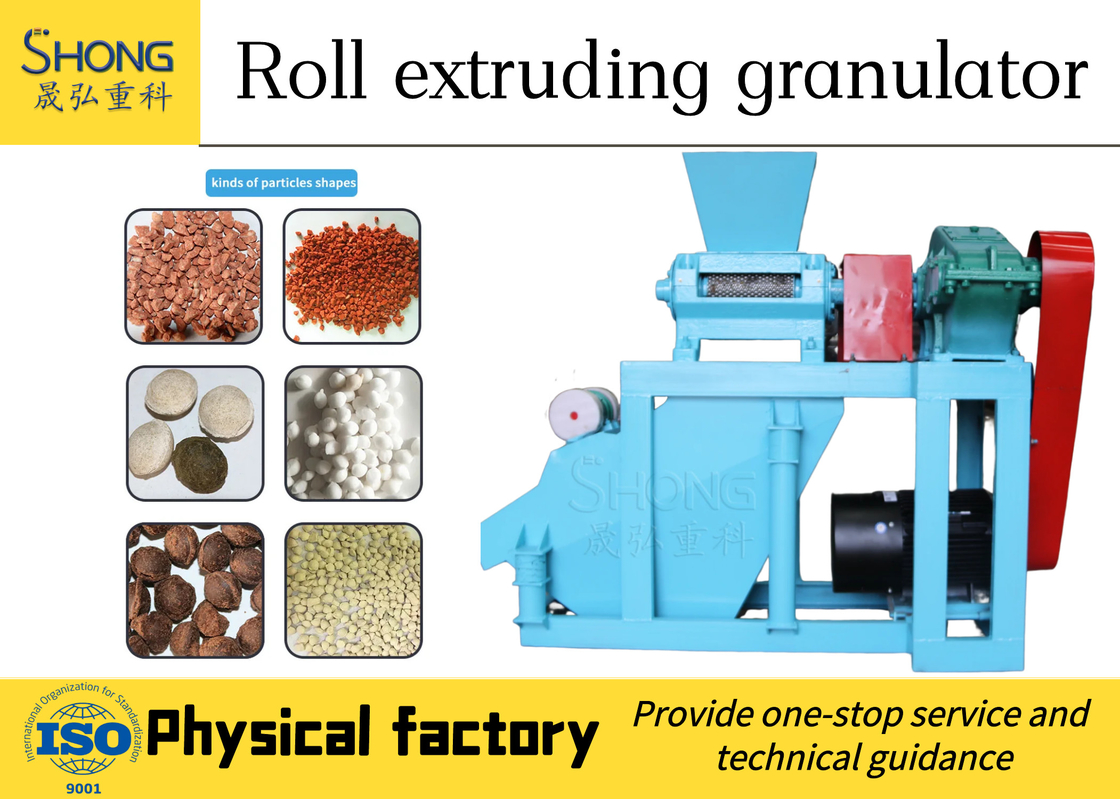

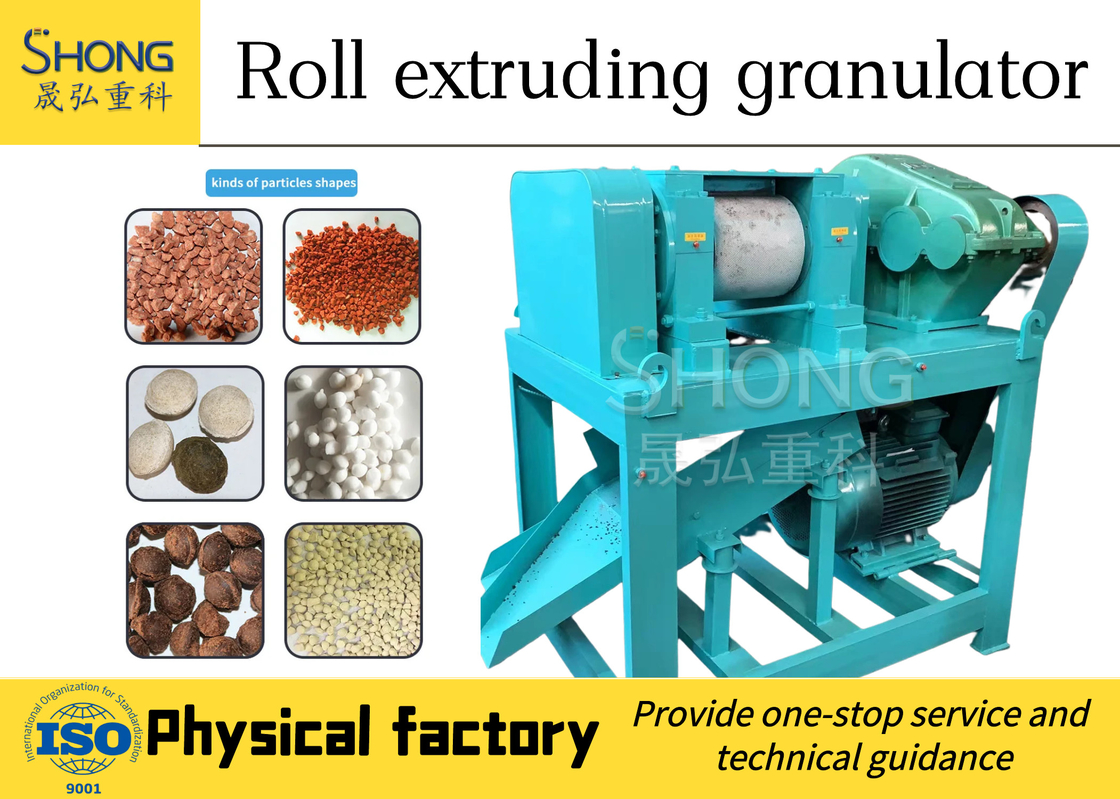

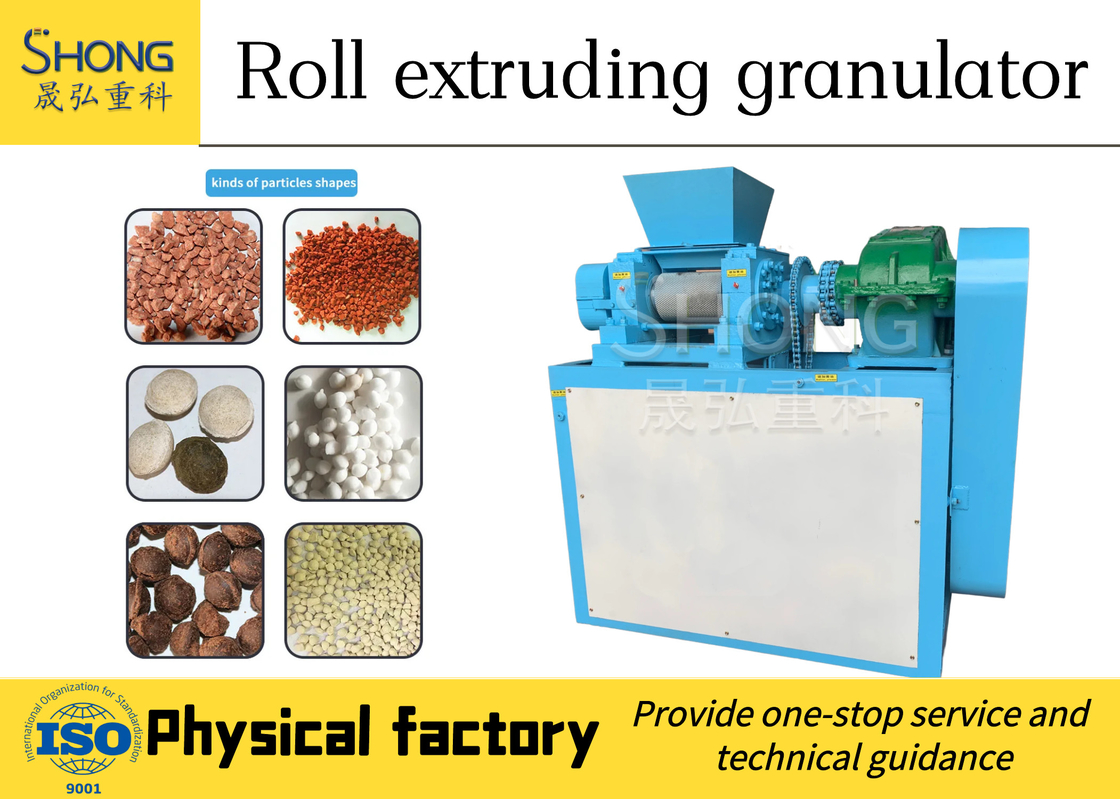

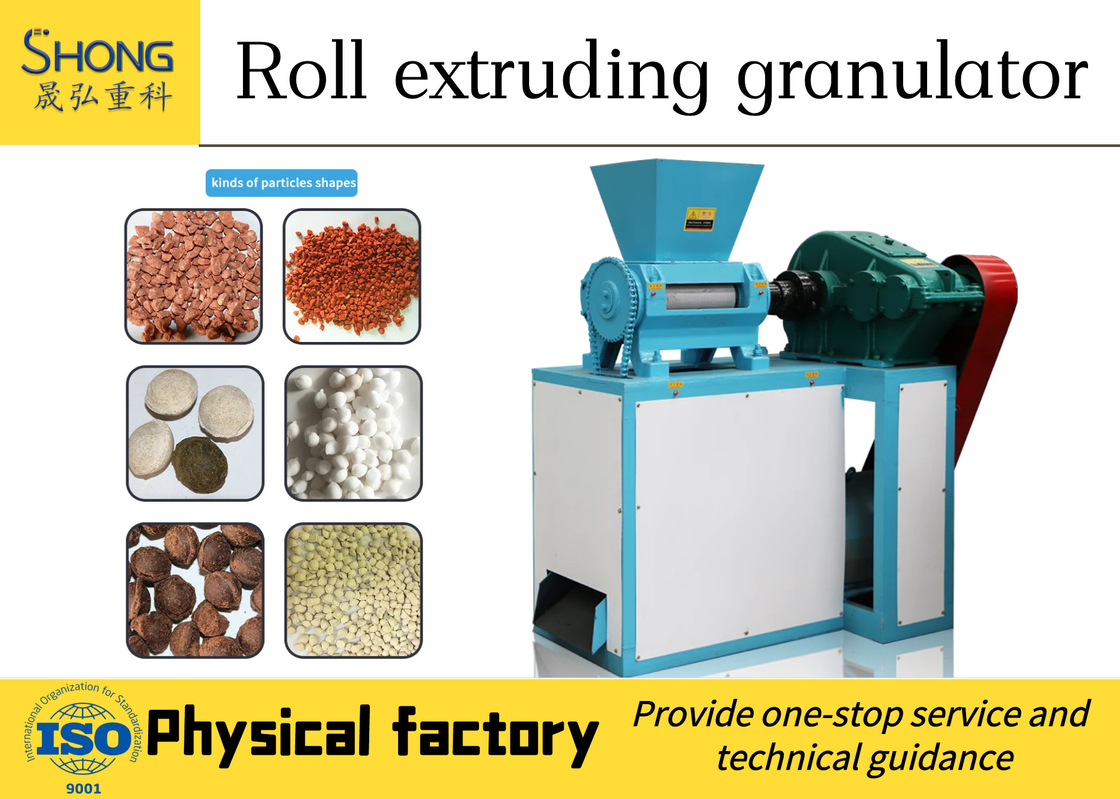

Compound Fertilizer Granulator Machine , NPK Fertilizer Making Machine

Compound Fertilizer Granulator Machine , NPK Fertilizer Making Machine
Compound Fertilizer Granulator Machine , NPK Fertilizer Making Machine
video play

Large Image :  Compound Fertilizer Granulator Machine , NPK Fertilizer Making Machine

Product Details:
Place of Origin: Zhengzhou China
Certification: SGS BV ISO
Model Number: DZJ-II-1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Package or Container
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs per day
Detailed Product Description
Brand Name: SHENGHONG Material: Carbon Steel
Model: 1mm-15cm Weight: 1.2T
Capacity: 1-4 T/h Suit For: NPK Compound Fertilizer
Warranty: 12 Months Pellet Diameter: 2-10mm
Voltage: 380V Usage: Making Fertilizer Granules
High Light:

fertilizer granulation equipment

,

fertilizer pellet machine

Compound Fertilizer Granulator Machine , NPK Fertilizer Making Machine



Product Introduction



The electric motor drives the pulley, and the transmission belt is transmitted through the speed reducer to a pair of two high-pressure roller bodies with a sliding mold shell to perform relative work.



The DZJ-I extruder has two rollers interacting with each other by the work of a pair of split gears.



The two rollers of the DZJ-II extruder are driven directly by two output shafts on a dedicated reducer to achieve the purpose of extrusion.



During the production, raw materials enter the hopper and are pressed and formed by the high-pressure roller body. After the mold is released, it flows to the crushing and forming part in the lower part of the roller body.



The power of crushing and forming is the relative movement of a pair of crusher rollers driven by the sprocket of the active press roller shaft via a chain drive.



After crushing and screening in the working chamber, the finished particles pass through the screen to the discharge then come out of the machine.



Description of Granulator



It has the advantages of beautiful appearance, simple operation, low energy consumption, long service life and high granulation rate. It is the most advanced compound fertilizer granulation equipment in China, and it is a kind of advanced compound fertilizer granulation equipment, Products throughout the country. The series of granulator for a wide range, with the following characteristics:
1. No drying process, room temperature granulation, a molding, less investment, quick, good economic returns.
2. Powerful operation is reliable, no waste discharge, stable operation, easy maintenance, process layout is reasonable, advanced technology, low production costs.
3. Raw materials are widely used for granulation of various raw materials such as compound fertilizer, medicine, chemical industry, feed, coal, metallurgy and so on, and can produce various kinds of concentrations, including organic fertilizer, inorganic fertilizer, biological Fertilizer, magnetic fertilizer, etc.) compound fertilizer.
4. In particular, rare earth, ammonium bicarbonate, ammonium sulfate compound fertilizer granulation, to fill the gaps, ranking the leading domestic level, is the national environmental protection technology for the promotion of the project.



Technical Parameters

Model DZJ-I 1.0 DZJ-I 2.0 DZJ-I3.0 DZJ-I 4.0 DZJ-II 1.0 DZJ-II 2.0
Capacity 1-1.5 1.5-2.5 2.5-3.5 3.5-4.5 1-2 1.5-2.5
Power 15Kw 18.5Kw 30Kw 45Kw 15Kw 18.5Kw
Press Roller Φ150×22O Φ150×30O Φ186×30O Φ300×30O Φ150×22O Φ150×30O
Feed Size 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm
Product Size Φ2.5~Φ10 Φ2.5~Φ10 Φ2.5~Φ20 Φ2.5~Φ20 Φ2.5~Φ10 Φ2.5~Φ10
Speed Reducer ZQH350 ZQH400 ZQH400 ZQH500
Material Mositure 2%~5% 2%~5% 2%~5% 2%~5% 2%~5% 2%~5%


Granule Strength  and Apperance Type:


Shape of finished products

oval, irregular, wheat shaped, etc., can also be customized according to customer requirements.

Material moisture requirement

not more than 10%

The rate of ball formation

95%

Output

1-4t/h ( can combine multiple granulators work together to increase output, see below

technical process chart).

Granule size

3-8mm (popular market granule diameter: 2.8-4mm)



Working principle



The series of roller granulation is extrusion sliding model, its working principle is driven by the motor belt and pulley, through the reducer to the drive shaft, and through the open gear and passive shaft synchronization, the opposite work. The material is fed from the hopper, extruded through the roll, stripped and pelletized, and passed through a chain, transferred to the crushing sieve studio, sieved and separated from the finished product pellets, and then the feed is mixed with the new material Granulation. With the continuous rotation of the motor, the material continues to enter, in order to achieve mass production.


Compound Fertilizer Granulator Machine , NPK Fertilizer Making Machine 0
